A/1K-LTS-30'-NIST - ACI
Automation Field Components
1,000 Ohm RTD, 2" Freezer Probe 316SS, 30', NIST Cert
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
145465
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/1K-LTS-30'-NIST - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

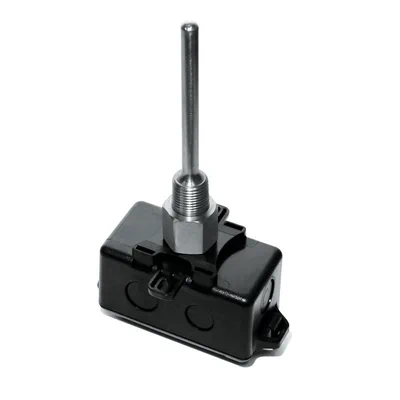

The ACI Thermistor Freezer Series features a 3/16” diameter stainless steel probe with a 30 Foot, 3 Conductor, 24 AWG Jacketed Teflon Cable. The sensors in this series are manufactured using ACI’s proven encapsulation process to eliminate the effects of moisture upon the sensors. The probe is designed to be used in a Refrigerated, Freezer or Hydronic applications where a remote sensor must be used. An optional NEMA 4X rated weatherproof enclosure and NIST Certificate is available as referenced in the ordering grid on the back of the product data sheet. Applications: Pharmaceutical, Refrigerators, Freezers, Hydronic Heating, Remote Sensor Applications
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
