FSIG-SLM500C - ACI
Automation Field Components
MODULAR AUDIBLE/VISUAL SIGNAL (CLEAR)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
150028
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
FSIG-SLM500C - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

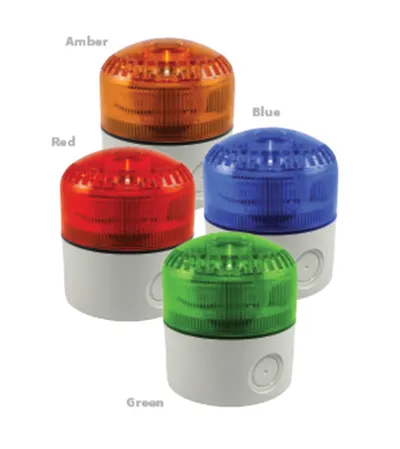

The FSIG-SLM500 Series is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm (alert, pre-alarm, alarm) controllable via independent electric contacts. Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from 32 tones via dip switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone selectable from 32 different tones, for a total of 64 unique tones. The volume of a selected tone is adjustable (65 dBa to 105 dBa for the highest performing tone). Its enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance. The mounting base, strobe/sounder are sold separately. An optional protective wire dome is
available for use in applications to protect the horn and strobe from being damaged once installed in your building.Other options may be available upon request. Contact ACI to discuss your application in greater detail or for more information regarding the strobes and audible alarm series.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :The stock quantity information reported in the product details is up to date. Products in stock can be shipped immediately. Products that are not in stock and whose delivery time is separately reported are shipped when the supply period is completed.
