BN2110-INW-4-PB - ACI
Automation Field Components

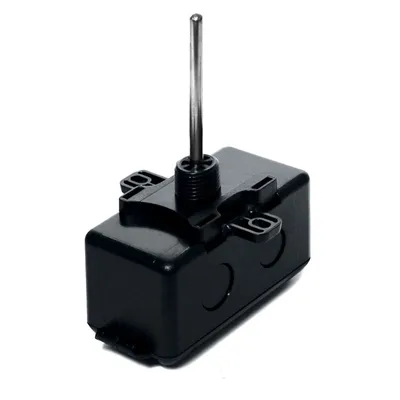

BACnet MS/TP, Modbus RTU, Temperature, Immersion No Well, 4", Plastic Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
146545
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
BN2110-INW-4-PB - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The BN Series Room Temperature and Humidity networked sensors are a cost effective, single or dual point native BACnet™ or Modbus sensing solution designed to reduce the need for additional input modules or building management controllers when a limited number of input points are available. The BN series offers both BACnet™ and Modbus protocols in one device, providing great flexibility with various systems. The BTL Certification provides confidence that these sensors may be used in any new or retrofit installation using a BACnet™ MS/TP controller with third party BACnet™ devices. Please contact KONTROLYUM for more information regarding the BN Series communicating sensors.
Applications: Ambient Air Temperature/Humidity Sensing, Office Buildings, Schools, Clean Rooms, Pharmaceutical Labs, Hospitals, Data Centers & Retail Stores
The ACI BN Series BACnet™ sensors are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com
Veris HWLP1T1, HWLP1T3, HWLP2T1, HWLP2XX, HWLPHTX,
Alerton BACtalk, WEBtalk, Viewport, Envision, Compass software
Honeywell Excel Web II, XL2026B2A, TB7600, Spyder BACnet
Reliable Controls MACH-System, MACH-Global, MACH-Zone, MACH-Net
Greystone HANTRC, HANTO, HANTD, NTO, NTD, CMD, CDD3, ULP, RPC, NTRC, UP, DWDT, ULP2-BAC, ULP1-BAC, CDD3A101S
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
