A/PT-DLP - ACI
Automation Field Components

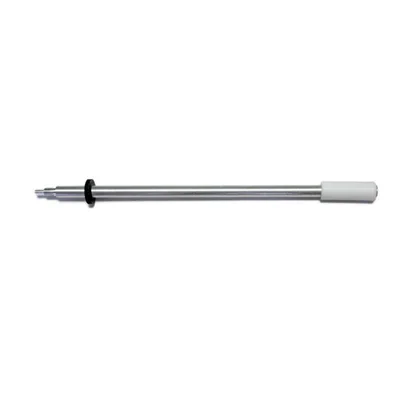

Static Pitot Tube for DLP Series, 7"
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
140998
ACI
U.S.A.
- Features
- Comments (0)
-
Data Sheet
A/PT-DLP - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
Pitot Tube for DLP Duct Static. Size: 7” (6.75” Insertion). Material: Aluminum
PITOT TUBE INSTALLATION: Slip the rubber washer over the threaded end of the pitot tube, keeping the washer as close to the threaded end as possible. Fasten the pitot into the threaded insert on the back of the enclosure. Press the rubber washer against the enclosure.
TUBING SETUP WHEN PITOT TUBE IS INSTALLED: Units will be shipped with silicone tubing attached to the high and low pressure barb fittings. The silicone tubing will need to be removed from the High Pressure (H) barb fitting and secured onto the pitot tube barb fitting. This will leave the high pressure barb fitting open to atmosphere, and the Low pressure barb fitting remaining at default setup.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
