A/1.8K-BP-6'CL2P - ACI
Automation Field Components
1,800 Ohm Thermistor, Bullet Probe, 1", 6' Plenum Cable
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
143468
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/1.8K-BP-6'CL2P - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

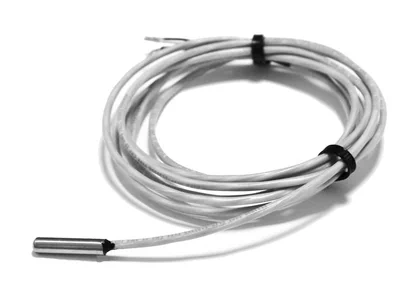

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Applications: Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
