6N1-ISO - ACI
Automation Field Components
Analog Input, Analog Output, Six Analog Average, HI/LO, Summing, Difference, Average, Binary
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
111750
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
6N1-ISO - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

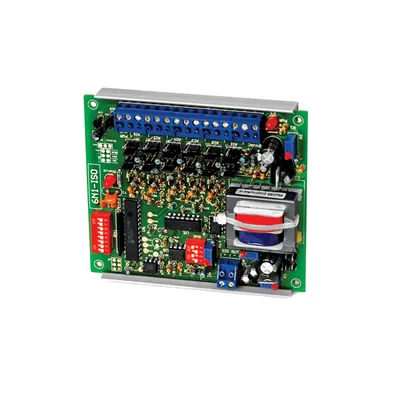

The 6N1-ISO is a microprocessor controlled interface designed to provide maximum flexibility with a minimum of cost. With a variety of standard inputs the 6N1-ISO provides the user with the ability to interface several devices to the analog output. The 6N1-ISO can average two to six inputs, output the highest of two to six inputs, output the lowest of two to six inputs or output the difference of two inputs. Input ranges are jumper selectable and all modes and analog output are DIP switch selectable. Output signal is optically isolated from input signals. The 6N1-ISO also accepts up to 6 digital inputs (binary sequence) and outputs a proportional analog signal. The power output terminal can be used for power if the inputs are only contact closures. The 6N1-ISO is covered by ACI's two (2) Year Limited Warranty.
- Coldest zone Warm Deck reset
- Signal Selector
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
