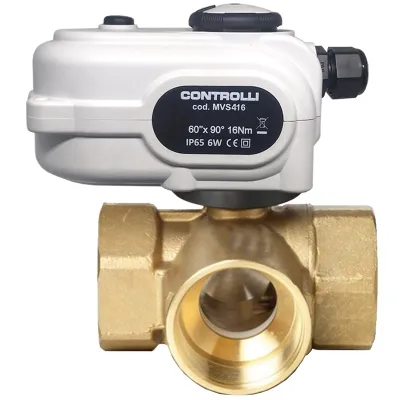

VDC8+MVS416F - IsmaControlli
Motorized Ball Valve
Motorlu küresel vana, DN50 (2') çapında 3 yollu içten dişli bağlantı, 1bar basınç kaybı altında geçen debi miktarı (kvs) 40m3/h, PN40 (maks. basınç dayanımı), 16Nm gücünde, 60sn açma/kapama süresi, 24V AC enerji beslemeli, IP65 koruma sınıfına haiz
This item has only "4" pieces left in stock!
Please contact us for lead time of more items needed.
4
VDC8+MVS416F
ISMACONTROLLI
ITALY
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
VDC8+MVS416F - IsmaControlli
Motorized Ball Valve
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
PN40, üç yollu içten dişli DN50 (2”), Kvs 40 vana ve yüzer kontrol motor, 24V AC, 16Nm, 60sn açma/kapama süresi, IP65
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :The stock quantity information reported in the product details is up to date. Products in stock can be shipped immediately. Products that are not in stock and whose delivery time is separately reported are shipped when the supply period is completed.
VDC2+MVS216 - IsmaControlli
Motorized Ball Valve
PN40, üç yollu içten dişli DN15 (1/2”), Kvs 4 ve On/Off kontrol, 230V AC, 16Nm
VDC2+MVS416F - IsmaControlli
Motorized Ball Valve
PN40, üç yollu içten dişli DN15 (1/2”), Kvs 4 vana ve yüzer kontrol motor, 24V AC, 16Nm, 60sn açma/kapama süresi, IP65
VDC4+MVS416F - IsmaControlli
Motorized Ball Valve
PN40, üç yollu içten dişli DN25 (1”), Kvs 10 vana ve yüzer kontrol motor, 24V AC, 16Nm, 60sn açma/kapama süresi, IP65

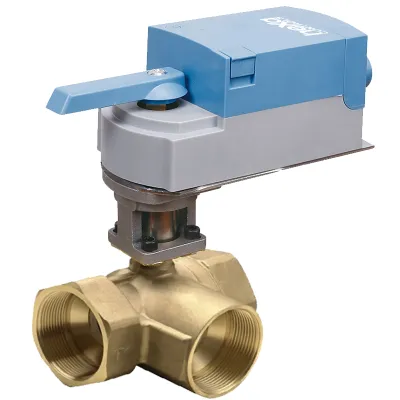

HCK-3050-F - Hexa Controls
Motorized Ball Valve
PN20, üç yollu dişli DN50 (2') kv40 vana gövdesi ve 3 kablolu yüzer kontrol motor 230V AC

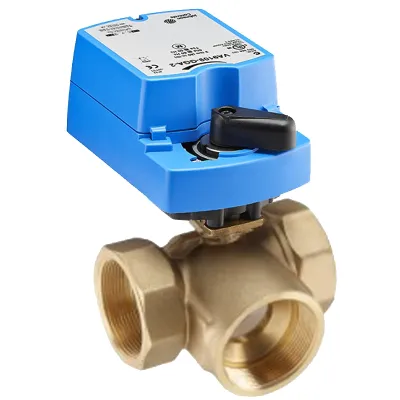

VG1841FS+909AGA - Johnson Controls
