TSENSE - ACI
Automation Field Components
Carbon Dioxide Sensor, Analog, Modbus, or BACnet, RH/TEMP, RELAY
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
135459
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
TSENSE - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
CO2 Sensor with Temperature, RH & Display TSENSE is an advanced and versatile 3 in 1 transmitter. Designed for installation in the air conditioned zone, it measures CO2 concentration, temperature and humidity in the ambient air. The data is transmitted to a BMS system or stand-alone controller using industry standard output signals and communications protocols, including BACnet™. TSENSE combines all the necessary elements for effective climate control in commercial office buildings, hospitals, hotels, schools and other facilities, allowing for a comfortable and healthy environment for the occupants. It is flexible in design and is suitable for use in many different energy efficient ventilation strategies. 0 to 10 VDC outputs based on 0–2000 ppm, 32-122°F, 0-95% RH. Relay On/Off, based on 1000/900 ppm (CO2). Life expectancy based on 15 years (typical). Backlit LCD displays: CO2 (ppm), Temperature (°F), and Humidity (%RH). Touch display menu system Environmental conditions covered: Carbon Dioxide, Temperature, and Relative Humidity.

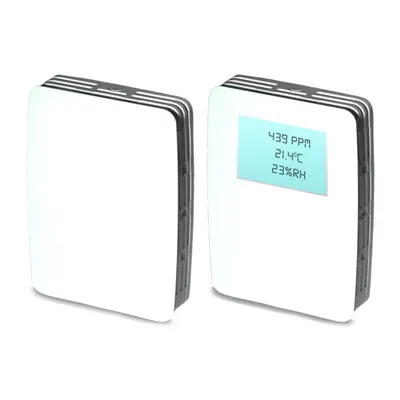

The two part numbers are TSENSE (no display) and TSENSE-LCD (with display).
Carbon Dioxide sensors or transmitters for HVAC, Building Automation Systems, or ANSI/ASHRAE Standard 62.1-2004. Typical applications include: schools, office buildings, auditoriums, gymnasiums, shopping malls, theatres, demand control ventilation, economizers.
- Combines CO2, Temperature, and Relative Humidity into one unit
- Bacnet or analog outputs
- User-friendly menu
Veris HWLP1T1, HWLP1T3, HWLP2T1, HWLP2XX, HWLPHTX,
Alerton BACtalk, WEBtalk, Viewport, Envision, Compass software
Honeywell Excel Web II, XL2026B2A, TB7600, Spyder BACnet
Reliable Controls MACH-System, MACH-Global, MACH-Zone, MACH-Net
Greystone HANTRC, HANTO, HANTD, NTO, NTD, CMD, CDD3, ULP, RPC, NTRC, UP, DWDT, ULP2-BAC, ULP1-BAC, CDD3A101S
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
