TP-HC-DISP-W - IsmaControlli

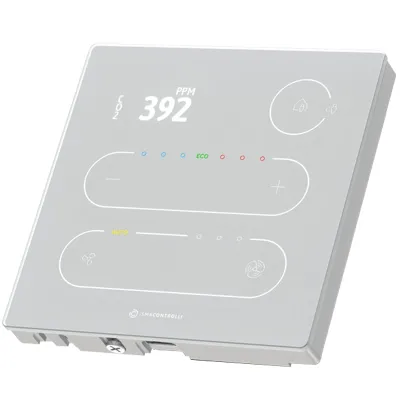

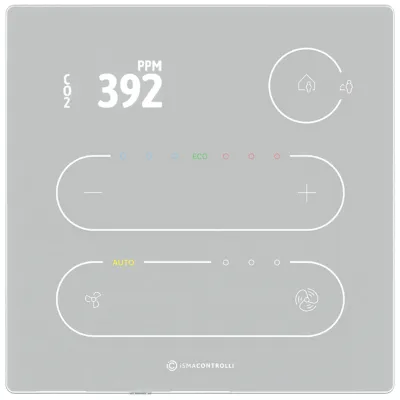

Touch Screen Glass Wall Panel, temperature, Humidity and CO2 Sensor
Touch screen glass wall panel with TFT display, from 0 ̊C to +40 ̊C temperature sensor (±0,5°C accuracy and ±0,1°C resolution), from 5% to 95% RH (without condensation) humidity sensor (±2% accuracy and ±1% resolution) and from 400 to 4,000ppm Carbon dioxide CO2 sensor (±3% accuracy, < 2% stability), Modbus RTU/ASCII and BACnet MS/TP multi-protocol interface, which are selectable using a DIP switch, 24V AC/DC power supply, IP20 ingress protection for indoor installation, 1.45cm thin design housing, 2 for fan control total 5 touch buttons
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
TP-HC-DISP-W
ISMACONTROLLI
POLAND
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
TP-HC-DISP-W - IsmaControlli
Touch Screen Glass Wall Panel, temperature, Humidity and CO2 Sensor
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
Touch screen glass wall panel with TFT display, from 0 ̊C to +40 ̊C temperature sensor (±0,5°C accuracy and ±0,1°C resolution), from 5% to 95% RH (without condensation) humidity sensor (±2% accuracy and ±1% resolution) and from 400 to 4,000ppm Carbon dioxide CO2 sensor (±3% accuracy, < 2% stability), Modbus RTU/ASCII and BACnet MS/TP multi-protocol interface, which are selectable using a DIP switch, 24V AC/DC power supply, IP20 ingress protection for indoor installation, 1.45cm thin design housing, 2 for fan control total 5 touch buttons
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :The stock quantity information reported in the product details is up to date. Products in stock can be shipped immediately. Products that are not in stock and whose delivery time is separately reported are shipped when the supply period is completed.
