SST5630AE - ACI
Automation Field Components
Wireless, Wireless Low Temp, Strap on/Remote, NEMA 4X Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
134785
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
SST5630AE - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

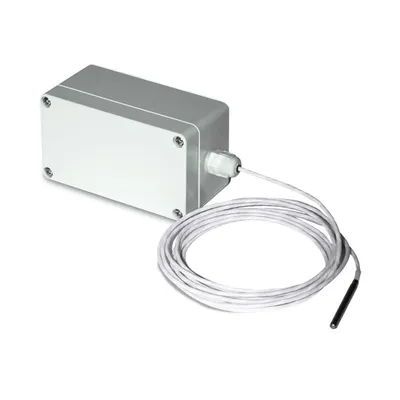

The SST5630AE is a battery-operated wireless temperature sensor that can be used as a remote probe for monitoring refrigeration or freezers from -300ºF (-184ºC) to 300ºF (149ºC) using the reliable 900MHz spread spectrum technology for communication. The sensing element is in a 2”, 0.1875” O.D. stainless steel probe with a 10’ cable length, and the SST5630AE is built with a standard NEMA 4X enclosure. The SST5630AE will transmit the temperature wirelessly to a MOD9200 transceiver which will send the data to a BAS using BACnet, Modbus, or Lonworks protocol. Transmission distance in a typical building is 200-300 feet horizontal depending on the layout and construction of the building, and one floor above and one floor below the transceiver. Sensor distance and reliability can be increased with the addition of a RR2552B(s) repeater. Applications: Museums, Churches, Historical Buildings & New Construction
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
