Data Sheet SL-2000-P - Ap-C Duct Smoke Detector download pdf

Please contact us if you need any other document this item may have. You can only download Technical Document (Datasheet) on this section.

Brand Information

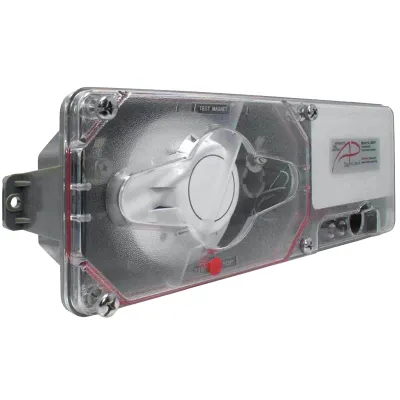

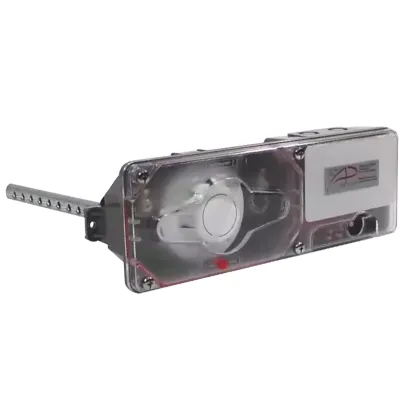

The SL-2000 Series Conventional Duct Detector is the latest innovation for early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications.

Brand Features

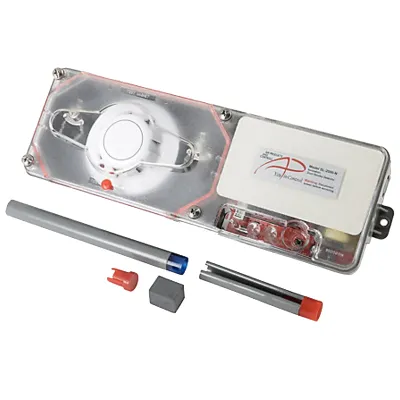

The SL-2000 includes many features that represent true innovations from current generation duct smoke detectors. Our traditional installer/servicer-friendly approach has been closely followed and expanded throughout the SL-2000. This philosophy provides a new level of efficiency in after-purchase value to both the installer/servicer and end-user. Our attention to detail has yielded a host of “No-Tools Required” features, as well as a multi-application performance level as yet unmatched in the industry. Innovative product combined with unsurpassed customer service equals the right combination for all of your projects. The key features below detail many of the customer-driven innovations incorporated in the SL-2000 Series. Listed for velocities between 100-4000 ft./minListed for high-temperature applicationsOperating voltages: 230VAC, 115VAC, 24VAC, 24VDCInterconnect up to 30 units for common functionsPatented “No-Tools Required” front or rear loading and removing sampling/exhaust tubesPatented “Test Port Valve” allows for aerosol smoke testing without cover removalClear cover fitted with four captive “No-Tools Required” thumbscrewsInstantaneous cover removal trouble indicationStaggered terminal blocks for easier wiringFlashing LED on detector head indicates normal operationMagnet test capability (magnet included)More wiring space than competitive modelsFootprint allows easy retrofit in many applications without additional drillingDuct wall gaskets on back of enclosure are pre-installedCompatible with the WP-2000 weatherproof enclosureReset switch is also an alarm test switch - competitive models require a magnet or cover removal to test at unitUnit includes green pilot and red alarm visual indicatorsExternal mounting tabs do not require cover removal to installColored cover gasket indicates proper cover sealUL, CUL, CSFM, and MEA ListedCompact, lightweight size means easy handling, lower shipping costsTwo sets of 10A form “C” alarm contactsOne set of 2A form “A” alarm contactsOne set of 10A form “C” trouble contactsLarge terminal connection screwsStandard interchangeable “plug-in” UL268 photoelectric or ionization headsAdvanced detector head design yields internal dust filteringNo additional screens or filters to cleanCompatible with building automation and fire alarm systemsIonization and Photoelectric versions availableComplete wiring details permanently attached to unit

Application

The unit is designed to prevent the recirculation or spread of smoke by air handling systems, fans and blowers. Complete systems may be shut down in the event of smoke detection. The SL-2000 is designed and built to meet all local code requirements, as well as the NFPA and ICC standards regarding HVAC supply and return duct smoke detectors. Output terminals are provided for a wide range of remote accessories such as horns, strobes, remote status indicators, and test/reset key switches or push buttons.

Product Information

The SL-2000-N Ionization Conventional Duct Detector is the latest innovation for early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications.

Key Features

Ionization duct smoke detectorThe SL-2000 includes many features that represent true innovations from current generation duct smoke detectors. Our traditional installer/servicer-friendly approach has been closely followed and expanded throughout the SL-2000. This philosophy provides a new level of efficiency in after-purchase value to both the installer/servicer and end-user. Our attention to detail has yielded a host of “No-Tools Required” features, as well as a multi-application performance level as yet unmatched in the industry. Innovative product combined with unsurpassed customer service equals the right combination for all of your projects. The key features below detail many of the customer-driven innovations incorporated in the SL-2000 Series. Listed for velocities between 100-4000 ft./minListed for high-temperature applicationsOperating voltages: 230VAC, 115VAC, 24VAC, 24VDCInterconnect up to 30 units for common functionsPatented “No-Tools Required” front or rear loading and removing sampling/exhaust tubesPatented “Test Port Valve” allows for aerosol smoke testing without cover removalClear cover fitted with four captive “No-Tools Required” thumbscrewsInstantaneous cover removal trouble indicationStaggered terminal blocks for easier wiringFlashing LED on detector head indicates normal operationMagnet test capability (magnet included)More wiring space than competitive modelsFootprint allows easy retrofit in many applications without additional drillingDuct wall gaskets on back of enclosure are pre-installedCompatible with the WP-2000 weatherproof enclosureReset switch is also an alarm test switch - competitive models require a magnet or cover removal to test at unitUnit includes green pilot and red alarm visual indicatorsExternal mounting tabs do not require cover removal to installColored cover gasket indicates proper cover sealUL, CUL, CSFM, and MEA ListedCompact, lightweight size means easy handling, lower shipping costsTwo sets of 10A form “C” alarm contactsOne set of 2A form “A” alarm contactsOne set of 10A form “C” trouble contactsLarge terminal connection screwsStandard interchangeable “plug-in” UL268 photoelectric or ionization headsAdvanced detector head design yields internal dust filteringNo additional screens or filters to cleanCompatible with building automation and fire alarm systemsIonization and Photoelectric versions availableComplete wiring details permanently attached to unit

Key Benefits

Designed and Manufactured in the USA.
