Data Sheet Q-CONTROLLERA-000 - ACI Automation Field Components download pdf

Please contact us if you need any other document this item may have. You can only download Technical Document (Datasheet) on this section.

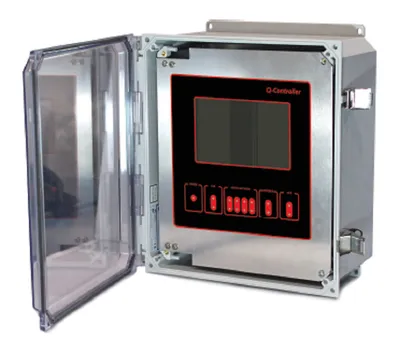

The new Q-Controller system uses an RS-485 communication protocol that accommodates 128 channels through four digital ports. In addition, there are 128 analog inputs from any 4-20mA device and 128 4-20mA outputs as well. There are also up to 128 binary inputs and 128 binary outputs. The system communicates wirelessly for programming and downloading of data through your smartphone or tablet device. Input/output boxes can be installed anywhere in the RS-485 network for ease of installation of additional sensors. A touch screen graphic display is used for programming. All relevant gas detection data, such as relay status, historical data, location and addresses of sensors are displayed by scrolling through multiple screens. The controller has a scheduler that can programmed to activate relays and deactivate relays (4, 10 Amp SPDT relays on main board) several times a day based on a frequency of day, weekday or weekend only. It also has an auto configure program that searches for connected devices. As the unit can accept any 4-20mA signal, it is ideal for additional monitoring such as temperature, humidity and other parameters. Several Q-Controllers can be connected together to a centralized system that will display gas detection concentrations of an entire facility. Remote monitors are an optional item that can be used to observe the concentration of gases prior to entering the space.
