PXP100 - ACI
Automation Field Components
Analog Input (0-5VDC), Pressure Output (0-100PSI), Dual Valve, Maintains Branch Pressure, (0-10V, 0-15V, 0-20mA Selectable)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
105528
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PXP100 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

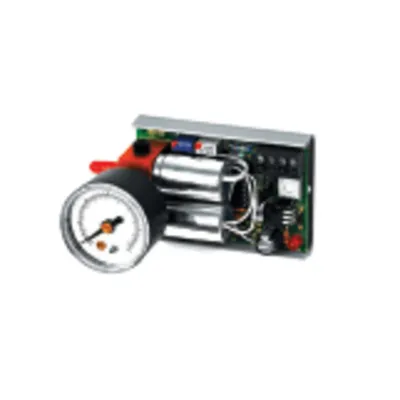

The PXP100 is an electric to pneumatic transducer which converts an analog electrical input signal to a proportional pneumatic output. The PXP100 will automatically modulate its control valve(s) to regulate the branch line pressure to the selected set point as determined by the input signal. The PXP100 offers four selectable input ranges which convert to a 0 to 100 psig modulating output. A 0-5 VDC feedback signal indicating the resultant branch line pressure is also provided. This signal varies linearly with branch pressure (0 volts= 0 psig, 5 volts = 100 psig). The PXP100 incorporates two valves and does not use air at set point. It’s branch exhaust lfow and response time are not limited by an internal restrictor and are similar to its load rate. If power fails to the PXP100, branch line pressure remains constant if the branch line does not leak air. The PXP100 accepts ¼” OD rigid or semi-rigid metallic tubing using integral compression fitting, ferrule and nut. A manual override (jumper selectable), which controls the output pressure, is provided for setup and troubleshooting. Custom calibration is available upon request for an additional charge. This will speed up installation time for the end user. Applications: Three-Way Mixing Valve Control, Pilot Positioner Control, Pneumatic Valve & Damper Actuator Control, Fan Vane Control, DDC Control, Above Ceiling Applications (mixing and VAV boxes) The PXP is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
