PTP3-15 - ACI
Automation Field Components
Pressure Input (3-15PSI), Analog Output (4-20mA), (1-5V, 2-10V, 3-15V Selectable)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
127201
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PTP3-15 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

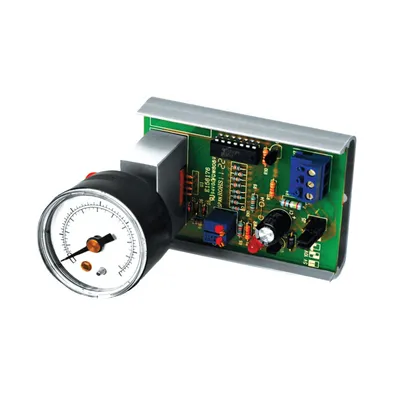

Three models of the PTP accept either a 3 to 15, 3 to 30, or 0 to minus 7.5 psig pneumatic pressure input and convert it to one of four proportional analog output ranges of 1-5, 2-10, 3-15 VDC or 4-20 mA which are jumper shunt selectable. The PTP is a positive current output device that is fully temperature compensated. A plugged gauge port is provided in the aluminum manifold for local mechanical indication via an optional 0 to 30 psi gauge. The PTP is covered by ACI's Two (2) Year Limited Warranty.
- Process control
- Building Automation
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
A/100-2W-D-12'-GD - ACI
Automation Field Components
100 Ohm (Two Wires) RTD, Duct, 12', Galvanized Enclosure
A/DLP-D10-W-U-D-A-3-A-0P-S - ACI
Automation Field Components
Differential Low Pressure, 0.10 inWC, Unidirectional, LCD, 0.50% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No Nist, Standard
A/MLP2-010-W-B-A-A-0P - ACI
Automation Field Components
Differential Pressure, Panel Mount, 10.00 inWC, BiDirectional, +/- 0.5% FSO, 4-20mA
A/TUCH2-AN-0058 - ACI
Automation Field Components
LCD, RH2%, SET, DEG F
BI-BOX-0 - ACI
Automation Field Components
4 Channel Relay Input Module, Q-Controller
A/TUCH2-CP-0117 - ACI
Automation Field Components
LCD, RH3%, SET, DEG F

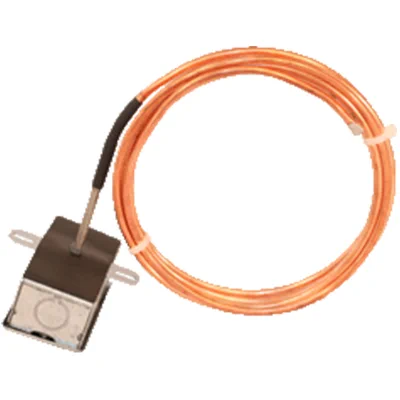

A/20K-A-24'-BB - ACI
