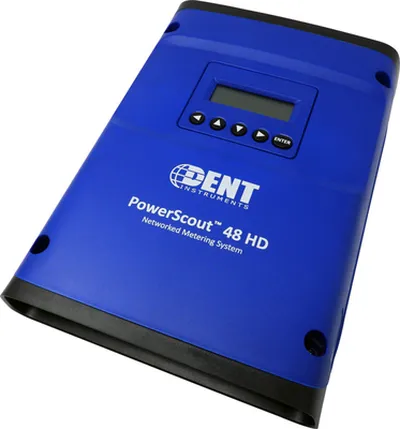

POWERSCOUT 48 HD, WITH ENCLOSURE + DISPLAY

The Powerscout™ PS48HD has been designed to be one of the safest and most fl­exible power meters on the market today since it can monitor up to 16 three phase or 48 single phase circuits from a single voltage reference or two voltage references simultaneously. All four Modbus and BACnet Serial/Ethernet communication protocols are included in a single meter reducing the number of SKUs required. Unlike other power meters, the PS48 can be easily paired with any ACI Standard or Revenue Grade CTs with a mV output to monitor operating currents from 0.25 to 4000 Amps. This reduces lead times since the PS48s don’t need to be configured at the factory and allows for easy setup or reconfiguration of the meter in the field. All CTs are sold separately, as shown on the Standard and Revenue Grade CTs product data sheets. Each meter also includes additional features such as the Tri-Color PhaseChek™ display, high voltage cover (safer installation), positive and negative Modbus Registers for bi-directional metering, ViewPoint™ HD configuration software, Revenue Grade 0.2% accuracy, NIST Calibration Certificate, displays real time information, two pulse outputs and is internally fused. The ViewPoint™ HD Configuration Software allows for easy configuration of the PS48 while sitting at your desk using a single USB Port and standard USB A-B cable. All setup table information can be saved to allow for easy programming of multiple meters with similar configurations.
