PS3HD-C-D-N - ACI
Automation Field Components
POWERSCOUT Wall mount, 3-Channel, 3-Phase
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
147657
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PS3HD-C-D-N - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

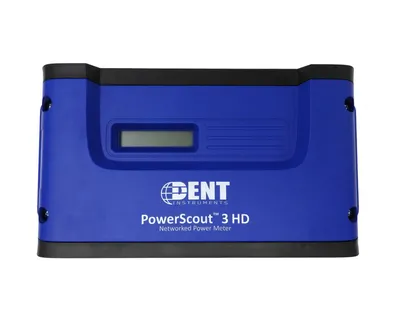

The PowerScout PS3HD has been designed to be one of the safest and most flexible power meters on the market today. The meter can be used to monitor any Single or Three phase service panel or piece of equipment that meets a power supply range of 90 to 600 VAC. All PS3HD power meters include all four Serial/Ethernet BACnet and Modbus communication protocols. Any Standard and Revenue Grade mV output current transformers from Dent Instruments can be used to monitor currents from 0.25 to 4000 Amps. This reduces lead time and number of sku’s required when compared to other power meters that must be factory configured. The CT’s are sold separately as shown on the Standard and Revenue Grade CT’s product data sheets. Additional features such as the Tri-Color PhaseChekTM display, DIN rail or Wall mount, positive and negative Modbus Registers for bi-directional metering, ViewPointTM
HD configuration software, Revenue Grade 0.2% accuracy, NIST Calibration Certificate, display’s real time information, and is internally fused. The ViewPointTM HD Configuration Software will allow for easy setup or reconfiguration while sitting at your desk or in the field through the use of a
single USB Port and standard USB A-B cable. All setup table information can be saved to allow for easy programming of multiple meters with similar configurations. For more information regarding the PS3HD and any of its accessories or to discuss your application in further detail, please contact
your ACI Sales representative.Applications: Energy and Demand Metering, Data Centers, Bi-Directional Metering, Load Surveys, LEED/Green Projects, Real Time Power Monitoring in Commercial, Retail and Industrial Environments
The PS3HD Power Meters are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's web site, Www.Workaci.Com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :The stock quantity information reported in the product details is up to date. Products in stock can be shipped immediately. Products that are not in stock and whose delivery time is separately reported are shipped when the supply period is completed.
