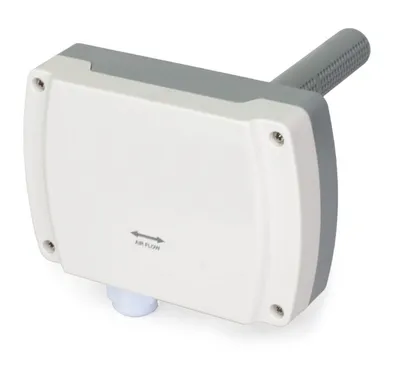

PM-D - ACI
Automation Field Components
PM2.5, Duct Mount, 0-500u g/m3, 4-20 mA and 0-10 VDC, Modbus RS-485
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
147640
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PM-D - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
“Particulate matter” (PM) is the general term used to describe solid particles and liquid droplets found in the air. The PM2.5 series of transmitters are designed to detect Particles less than 2.5 μm in diameter include smoke, smog, bacteria, _ne dust and liquid droplets, and report the particle concentration of the monitored environment.
The unit utilizes a laser particulate matter sensor to detect particle sizes from 0.3 ~ 2.5 μm. The sensor has good long-term stability with an accuracy 10% reading or 10 μg/m3. The room unit features field selectable outputs, 4-20 mA, 0-10 VDC, and Modbus RTU (RS485), relay, and display. The sensor has two jumper selectable working modes for monitoring PM. The Normal Mode monitors the environment continuously and Auto Mode reduces the measuring time to extend service life. The sensor is sent default in Auto Mode.
Applications: Monitoring air quality
The PM Series is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :The stock quantity information reported in the product details is up to date. Products in stock can be shipped immediately. Products that are not in stock and whose delivery time is separately reported are shipped when the supply period is completed.
