OST2630A - ACI
Automation Field Components
Wireless, Wireless Temp, Outdoor, NEMA 4X Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
130815
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
OST2630A - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

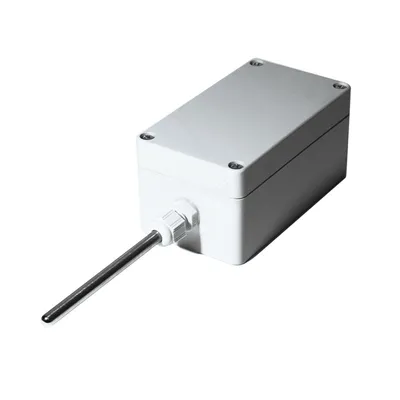

The mesh network OST2630 is a battery operated compact wireless outside air temperature sensor. The sensor is housed in a NEMA4 enclosure and can be mounted anywhere in the shaded area outside of a building. If needed the distance from the sensor to the receivers can be extended using the RR2552 repeater. The Meshnet 900® wireless sensors utilize reliable Spread Spectrum Radio technology. Together with the Meshnet 900® receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. ACI wireless sensors and systems are designed for retrofit HVAC, Building Automation, and industrial systems. Typical applications include: churches, museums, historical sites, etc. They are also suitable for flexible office/work station lay outs, auditoriums and conference centers with movable walls, or wide open warehouse spaces.
- Data Link LEDs confirm data transmission
- ACI can provide additional set up support before shipping
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
