NO2-D-RB-D - ACI
Automation Field Components

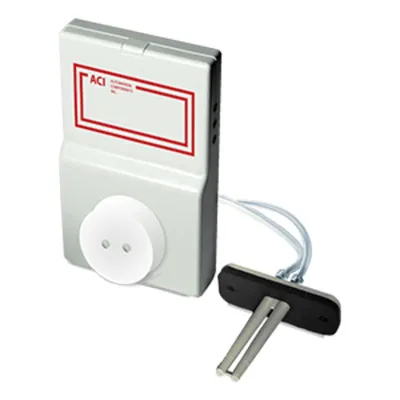

Nitrogen Dioxide Sensor, 0-6 PPM Default, (10 PPM Max), Duct Mount, 4-20mA, 2-10VDC Output, LCD, Relay & Buzzer
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
113012
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
NO2-D-RB-D - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The NO2 transmitter monitors nitrogen dioxide (NO2) and is designed for the continuous monitoring of vehicle exhaust in non-hazardous areas. A wide spectrum, long life electrochemical sensor measures the amount of CO or NO2 in the environment. Both the Room and Duct transmitters are offered in a standard NEMA 1 plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is available with the room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. The NO2 transmitter is covered by ACI's Two (2) Year Limited Warranty.
ACI nitrogen dioxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, school bus parking areas.
- Reliable sensor performance (Electrochemical)
- Push button programming
- Relay option
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
