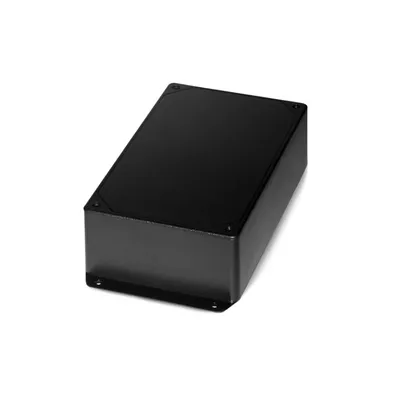

MOD9200BNT - ACI
Automation Field Components
Wireless, BACnet® MSTP Network Transceiver, 50 Sensors/100 points (MAX), Configuration Software24VAC
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
130658
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
MOD9200BNT - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The Meshnet900™ BACnet™ network transceiver utilizes reliable Spread Spectrum Mesh Network Radio technology. Together with other wireless sensors and controls, the system can be used to transmit remote sensor readings, status/alarm indications, control signals and outputs wirelessly. It is compatible with any control panel or Automation System that utilizes BACnet™ MSTP (Master Slave Token Passing) communication protocol or interface. Up to 50 separate physical wireless sensor transmitters and/or wireless remote output (analog & digital) modules can be used with one MOD9200BNT Transceiver and up to 100 data points and 100 outputs can be monitored and controlled with one (1) MOD9200 Transceiver. ACI wireless sensors and systems are designed for retrofit HVAC, Building Automation, and industrial systems. Typical applications include: churches, museums, historical sites, etc. They are also suitable for flexible office/work station lay outs, auditoriums and conference centers with movable walls, or wide open warehouse spaces.
- Data Link LEDs confirm data transmission
- ACI can provide additional set up support before shipping
- Software Download Here
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
