FS-1A - ACI
Automation Field Components

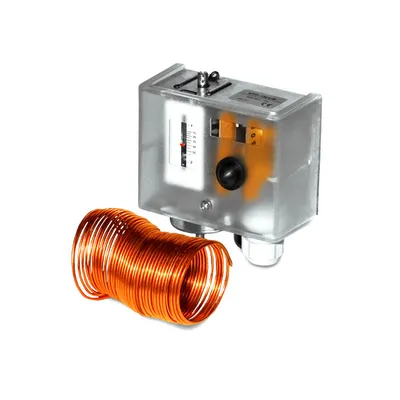

Freeze Stat, 20' Capillary, Automatic Reset, (1) SPDT
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
102483
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
FS-1A - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The FS Series controllers are low limit controllers, also known as "Freeze Stats". These devices were designed for use on HVAC equipment that requires low-temperature cutout protection to prevent cooling coils from freezing. They should be mounted between the heating and cooling coils on the supply side of the fan unit. They respond to the lowest temperature sensed along any 1 foot section of the sensing element. The FS Series has manual and automatic reset versions, as well as, models that feature one or two sets of SPDT contacts. The FS Series are covered by ACI's Two (2) Year Limited Warranty.
Low limit freeze stats, or low temperature cut-out thermostats, are designed for freeze protection to heating and cooling coils in heating, ventilation and air conditioning (HVAC) systems.
- Adjustable setpoints
- Manual or Auto reset versions
- Lengths up to 20 feet
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
