ESENSE-IP50 - ACI
Automation Field Components

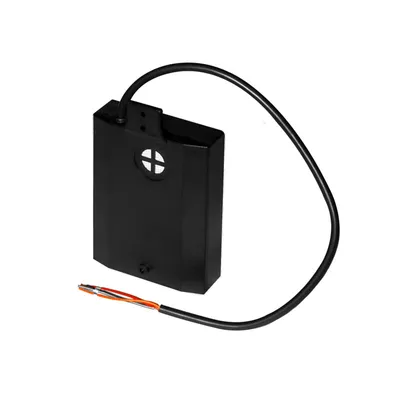

Carbon Dioxide Sensor, 0-2000 PPM, IP50 Enclosure, Pigtail Wiring, 0-10VDC & 4-20mA Output
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
130030
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
ESENSE-IP50 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The ESENSE-IP50 Room/Duct transmitters monitor the carbon dioxide (CO2) levels in factory mounted, OEM applications. The concentration of CO2 is a good indication of the overall indoor air quality. The ESENSE Series is based on a single beam non-dispersive infrared technology and is a cost-optimized solution for the climate control of buildings and other processes. In addition, ABC software eliminates the need for manual calibration. The ESENSE Series measures the CO2 concentration in the ambient air up to 2,000 ppm and converts the data into an analog output. This data can be used in conjunction with a Building Automation or Demand Control Ventilation System to decrease energy consumption while creating a healthier indoor climate. This product is compact in size, intended for factory mounting for both wall and duct applications with the protection class IP50. A 300 mm long cable connected to the device makes it possible to place the sensor where mounting is difficult.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
