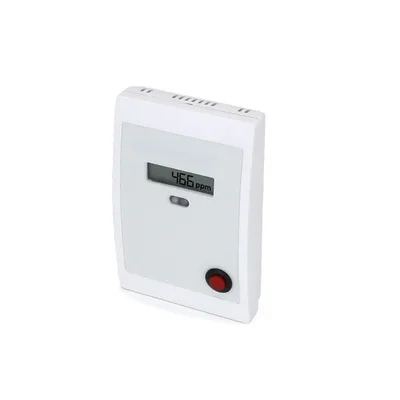

ESENSE-FAI Room series monitors the carbon dioxide (CO2) levels in school and office type environments. The concentration of CO2 is a good indication of the overall indoor air quality. The ESENSE-FAI measures the carbon dioxide concentration in the ambient air and alarms with sound and light when the levels are exceeding the defined levels.

The ESENSE-FAI features a LCD display, analog output, an audible alarm, and three LEDs: Green (0- 800 ppm), Yellow (800-1,400 ppm), and Red (1,400 ppm >). The 94 Db audible alarm also has a mute button prominently visible on the front of the enclosure.

The ESENSE-FAI Series is based on a single beam non-dispersive infrared technology and is a cost-optimized solution for the climate control of buildings and other processes. In addition, ABC software eliminates the need for manual calibration. The ESENSE-FAI Series measures the CO2 concentration in the ambient air up to 2,000 ppm and converts the data into an analog output.

This data can be used in conjunction with a Building Automation or Demand Control Ventilation System to decrease energy consumption while creating a healthier indoor climate.

Applications: Schools, Classrooms, Office Buildings, Auditoriums, Gymnasiums, Shopping Malls, Theaters, Demand Control Ventilation & Economizers

The ESENSE Room Series is covered by ACI’s Five (5) Year Limited Warranty. The warranty can be found in the front of ACI’s Sensors & Transmitters catalog, as well as on ACI’s web site, workaci.com.
