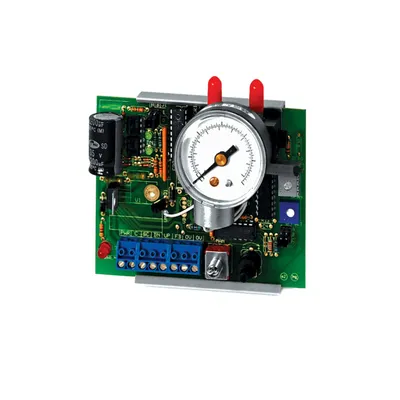

EFP2GFS - ACI
Automation Field Components

Floating Point Input (45 sec), Pressure Output (0-15PSI), Dual Valve, Exhausts on Power Failure, Gauge, (90, 60, 120 sec), (0-15PSI, 0-20PSI)

More information

This item is temporarily out of stock.

It can be backordered right now, and we can ship it within 5 weeks.

STOCK:
0
SKU:
106323
BRAND:
ACI
ORIGIN:
U.S.A.
List Price : 426.00 USD
30% Off Price: 298.20 USD
Net Price: 10,239.20 TL

{{CMP.TITLE}}

  • EFP2GFS Data Sheet
    EFP2GFS - ACI
    Automation Field Components

    download pdf


    Please contact us if you need any other document this item may have.
    You can only download Technical Document (Datasheet) on this section.



    The EFP converts a floating point signal into a proportional pneumatic signal ranging from 0-20psig.  It is designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted.  The EFP is a constant bleed interface with branch exhaust response time determined by the bleed orifice and pressure differentials.  If power fails to the EFP, it will continue to bleed through the bleed orifice until branch pressure is zero psig.  The EFP2 incorporates two valves (one controls exhaust) and does not bleed air at set point.  Its branch exahust flow and response time are not limited by an internal restrictor and are similar to its load rate.  If power fails to the EFP2, branch line pressure remains constant if the branch line does not leak air.  The EFP2FS is a two valve fail safe model.  Its three-way branch exhaust valve allows exhaust of branch line air on a power failure.  The EFP is covered by ACI's Two (2) Year Limited Warranty.

    • Three way mixing valve control
    • Pilot positioner control
    • Compressor staging
    • Fan Vane control

    Warranty :
    This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.
    Delivery Information :
    ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
