DT2650A - ACI
Automation Field Components
Wireless, Wireless Temp, Averaging, 24'
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
131032
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
DT2650A - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

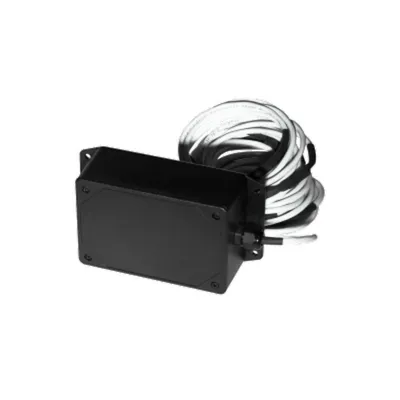

The mesh network DT2650 is a battery operated spread spectrum wireless flexible averaging temperature sensor. It incorporates nine (9) temperature sensors encapsulated at equal distance across the length of the probe for average duct temperature monitoring. Together with the Meshnet 900® receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. ACI wireless sensors and systems are designed for retrofit HVAC, Building Automation, and industrial systems. Typical applications include: churches, museums, historical sites, etc. They are also suitable for flexible office/work station lay outs, auditoriums and conference centers with movable walls, or wide open warehouse spaces.
- Data Link LEDs confirm data transmission
- ACI can provide additional set up support before shipping
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
