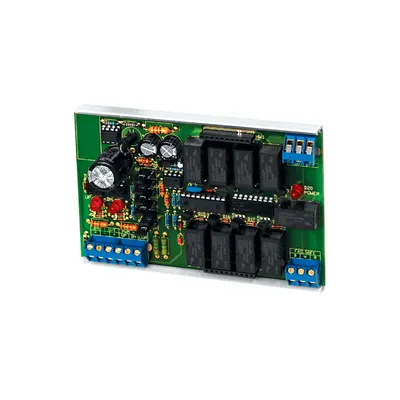

DRN3.1 - ACI
Automation Field Components

PWM/Analog/Floating Point to Resistance Output, Selectable Resistance Network

More information

This item is temporarily out of stock.

It can be backordered right now, and we can ship it within 5 weeks.

STOCK:
0
SKU:
102469
BRAND:
ACI
ORIGIN:
U.S.A.
List Price : 341.00 USD
65% Off Price: 119.35 USD
Net Price: 3,907.14 TL

{{CMP.TITLE}}

  • DRN3-1 Data Sheet
    DRN3.1 - ACI
    Automation Field Components

    download pdf


    Please contact us if you need any other document this item may have.
    You can only download Technical Document (Datasheet) on this section.



    The DRN3.1 is an interface that allows microprocessor control of a variable resistance. The DRN3.1’s isolated resistor network can be controlled by several different DDC signal types. It directly replaces a variable resistance controller and simulates the action of a slide wire or rotary potentiometer. All connections of the simulated potentiometer, the wiper and both ends of the resistance range, are available on the DRN3.1terminal strip.  The DRN3.1 accepts an ANALOG, PULSE, or FLOATING POINT input signal (including triac) and converts it into a proportional resistive output. The output resistance does not wrap around if the input signal exceeds the highest or lowest selected input value.  The DRN3.1 has on-board fail-back relays that lock out the original resistive signal during operation.  However, if the supply power is lost, control of the circuit will revert back to the original controller signal.  An easy local override can be made by placing a fixed (or variable) resistor between W and R Fail-safe terminals.  The DRN3.1 is covered by ACI's Two (2) Year Limited Warranty.

    Resistance Networks are required to complete your order and must be ordered separately. See "Product Accessories" below for a list of Resistance Networks.

    Honeywell Modutrol IV Motors Series 90

    Warranty :
    This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.
    Delivery Information :
    ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
