CTS-M5130X-Q0R0000 - ACI
Automation Field Components
Toxic Gas Sensor, Room, Oxygen, 0-25% Volume, 4-20mA, 2-10VDC Output, LCD, Relay & Buzzer
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
125955
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
CTS-M5130X-Q0R0000 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

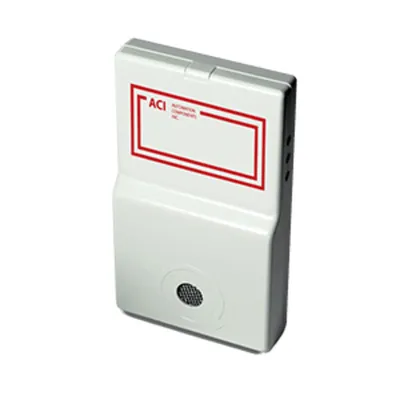

The CTS-M5 Series has a microprocessor based transmitter. It uses an Electrochemical gas sensor to monitor a variety of gases. The CTS-M5 Series offers great value since it includes many standard features that can only be found as expensive options in other manufacturer's models. A digital display (LCD), push-button programming and on-board meter jacks are all standard. The transmitter provides an analog output of 4-20 mA DC or 2-10 VDC, proportional to the measured gas range, for transmission to the Building Automation System. The CTS-M5 Series offers flexibility and simplicity in one package. The relay setpoints may be seen as increasing or decreasing actuation simply by adjusting the deadband relationship. Set the deactuation point above the actuation setpoint and the CTS-M5 will automatically alarm on decreasing concentrations. Plus, calibration is extremely simple. First, apply the calibration gas and then adjust the potentiometer to the desired reading on the display. The CTS-M5 Series is covered by ACI's Two (2) Year Limited Warranty. Toxic gas sensors or transmitters for HVAC, Building Automation Systems, or OSHA standards.
- Reliable sensor performance (Electrochemical)
- Push button programming
- Relay option
Applications include: Breweries, Dairy Industry, Food Processing Facilities, Hospitals, Pumping Stations, Water and Sewage Treatment Plants
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
