Data Sheet CO-R-RB-D - ACI Automation Field Components download pdf

Please contact us if you need any other document this item may have. You can only download Technical Document (Datasheet) on this section.

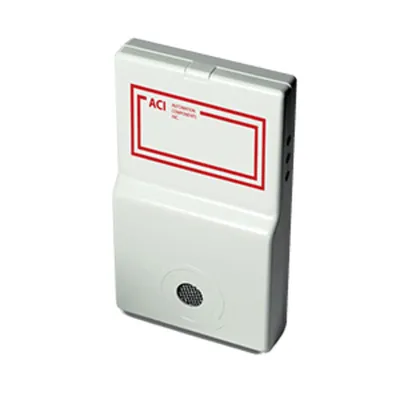

The CO transmitter monitors carbon monoxide (CO) levels and is designed for the continuous monitoring of vehicle exhaust in non-hazardous areas.  The CO uses a wide spectrum, long life electrochemical sensor to measure the amount of carbon monoxide in the environment. It is offered with an operating range of 0 to 125 ppm. Both the Room and Duct CO transmitters are offered in a standard NEMA 1 rated ABS Polycarbonate plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is only available with the CO room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer.  the CO Series is covered by ACI's Two (2) Year Limited Warranty.

ACI carbon monoxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, airports, central heating plants, fire stations, hospitals, mining, food processing facilities, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, and school bus parking areas.

• Reliable sensor performance (Electrochemical)
• Push button programming
• Relay option
