CO-R-4X - ACI
Automation Field Components

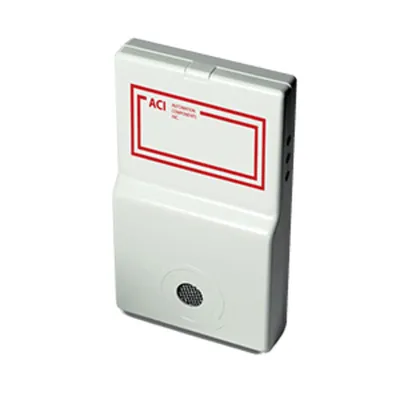

Carbon Monoxide Sensor, 0-125 PPM Default, (250 PPM Max), Room Mount, 4-20mA, 2-10VDC Output, NEMA 4X Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
108933
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
CO-R-4X - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The CO transmitter monitors carbon monoxide (CO) levels and is designed for the continuous monitoring of vehicle exhaust in non-hazardous areas. The CO uses a wide spectrum, long life electrochemical sensor to measure the amount of carbon monoxide in the environment. It is offered with an operating range of 0 to 125 ppm. Both the Room and Duct CO transmitters are offered in a standard NEMA 1 rated ABS Polycarbonate plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is only available with the CO room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. the CO Series is covered by ACI's Two (2) Year Limited Warranty.
ACI carbon monoxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, airports, central heating plants, fire stations, hospitals, mining, food processing facilities, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, and school bus parking areas.
- Reliable sensor performance (Electrochemical)
- Push button programming
- Relay option
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
