ASENSE-R - ACI
Automation Field Components

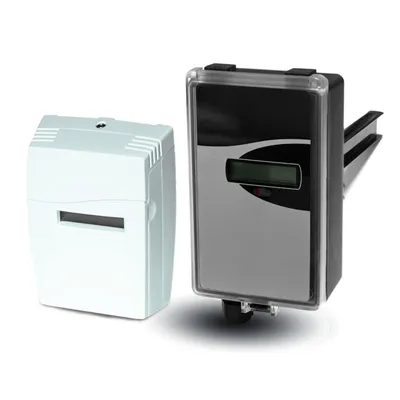

Carbon Dioxide Sensor, Room Mount, 0-2000 ppm, Temperature, 0-10VDC & 4-20mA
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
131189
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
ASENSE-R - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The ASENSE Duct transmitters monitor the carbon dioxide (CO2) levels in industrial, commercial, school, and office type environments. The concentration of CO2 is a strong indication of the overall indoor air quality. The ASENSE Series is based on a single beam non-dispersive infrared technology, and is a cost-optimized solution for the climate control of buildings and other processes. In addition, ABC software eliminates the need for manual calibration. The ASENSE Series measures the CO2 concentration in the ambient air up to 2,000 ppm and converts the data into an analog output. This data can be used in conjunction with a Building Automation or Demand Control Ventilation System. This decreases energy consumption while creating a healthier indoor climate. Units feature an analog temperature output (correlates to 32 to 122°F) and the option to add a relay.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
