AFS-460 - ACI
Automation Field Components

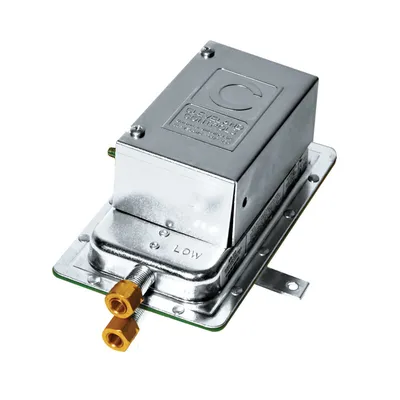

Differential Pressure Switch, 0.4 to 12.0 inWC, SPDT N/C, Manual Reset, Compression Fitting
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
101791
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
AFS-460 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
Note (2/22/21): Due to component shortages, this product is experiencing longer than normal lead times. Please contact KONTROLYUM for further information. The AFS-460 series differential pressure switches are general purpose proving switches designed to require a manual operator reset following actuation. These pressure switches can be used to sense either positive, negative, or differential air pressure in HVAC and Energy Management applications which require operator interface. The AFS-460 has an input operating range of 0.40” to 12.0” W.C. with an adjustable setpoint range of 0.40” +/- 0.06” to 12” of W.C.. Each unit contains a diaphragm, calibration spring, and a snap-acting SPST-NC (Manual Reset) switch. The sampling connections are located on each side of the diaphragm. They will accept a 0.25” O.D. rigid metallic tubing via the integral compression ferrule and nut. The enclosure cover guards against accidental contact with the “live switch” terminal screws and the setpoint adjustment screw. It also contains a 1/2” conduit knockout in the cover of the enclosure.
ACI differential air pressure switches are designed for HVAC, Building Automation, or light industrial systems. Typical applications include: building static pressure, filter monitoring, and proof of air flow.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
