AFS-262 - ACI
Automation Field Components
Differential Pressure Switch, 0.05 to 2.0 inWC, SPDT, Auto Reset, Compression Fitting
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
101789
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
AFS-262 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

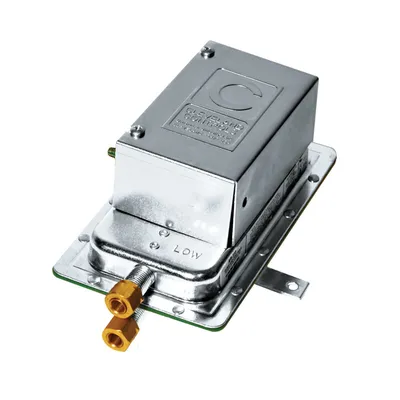

The AFS-262 differential pressure switches are general purpose proving switches designed for both HVAC and Energy Management applications. These pressure switches can be used to sense positive, negative, or differential air pressures. The AFS-262 has a field adjustable operating range of 0.07" to 2.0" W.C.. It also has a setpoint range of 0.05" +/- 0.02" to 2" W.C. with a field adjustable "release range" of 0.04" to 1.9" W.C.. The AFS-262 will accept a 0.25" O.D. rigid metallic tubing via the integral compression ferrule and nut. The enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting screw. It also contains a 1/2" conduit knockout in the cover of the enclosure.
ACI differential air pressure switches are designed for HVAC, Building Automation, or light industrial systems. Typical applications include: building static pressure, filter monitoring, and proof of air flow.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
