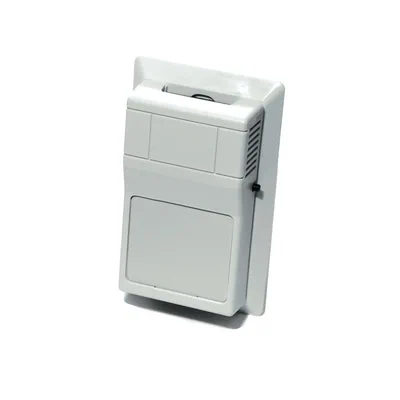

ACI temperature transmitters are a cost effective solution for all of your temperature measurement needs. The transmitters are accurate, durable, and reliable. Numerous mounting configurations are offered. ACI produces two temperature transmitters, the A/TT100 for use with a 100 Ohm Platinum RTD and the A/TT1K for use with a 1K Ohm Platinum RTD. The transmitters produce a linear 4-20 mA output carried on a two-wire system. Optional output voltage ranges of (+1-5 or +2-10 VDC) can also be ordered. The transmitter is supplied factory calibrated, and supplied with zero and span potentiometers for field calibration. The transmitter is linear from -50 to 392°F. ACI's room enclosures combine option flexibility with attractive styling. In addition, they have four-way airflow to minimize self heating. Options include setpoint, override, communication jack, and LCD. Additional enclosure colors are available on a limited basis. ACI room temperature sensors are designed for HVAC or Building Automation Systems.  Specific applications include: zone control, office and work spaces, auditorium, conference rooms, and hallways. Sample Part #: A/TT100-6-RS-4 or A/TT100(20-120F)-R-DC-4 TT-RSO Instruction

• Analog output, custom calibration ranges available, NIST certificate option
• 4-Way airflow
