A/TTM100-I-2.5'-4-EXPL - ACI
Automation Field Components

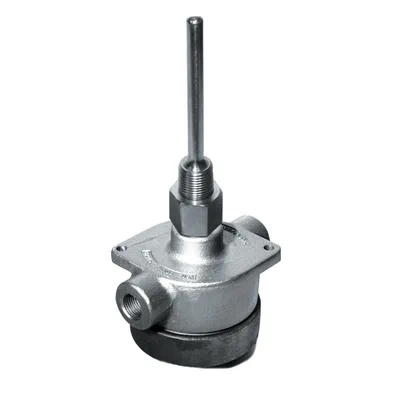

Transmitter w/ 100 Ohm RTD (NIST Cert), Hazardous, Immersion, Welded Well, 2.5', 4-20mA Output
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
146006
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/TTM100-I-2.5'-4-EXPL - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
ACI Hazardous Area Sensors are a cost effective solution for all of your hazardous temperature measurement needs. They are accurate, durable, reliable and can be ordered in room, duct or immersion configurations. This sensor series in available in with various sensor types. Please see corresponding cut sheets for individual sensor specifications. The ordering chart on the next page shows a sampling of sensing elements that are available. (contact KONTROLYUM for additional sensor types) They are offered with an Explosion Proof Head, which includes an O-ring, Gasket, Ground Screw, (2) 1/2” NPT female openings, and mounting holes in the base of the housing for ease of installation. The Condulet Enclosure has a UL Listing of 886 and meets the following: CL. I, DIV. 1 & 2, GR. A, B, C, D; CL. II, DIV. 1, GR. E, F, G; CL.II, DIV. 2, GR. F,G; CL. III; NEMA 3,4, 7ABCD, 9EFG. All immersion sensors include a 304 Series stainless steel thermowell. For applications in which 304 S.S does not meet your corrosion requirements, 316 Series machined stainless steel and Monel thermowells are available and must be ordered separately. (Please note: This product should be installed by a trained professional with knowledge of local codes and regulations). ACI hazardous area temperature sensors are designed for Class I,Div,1 &2, Groups A,B,C, & D requirements. Specific applications include: combustible environments, heavy duty/industrial areas.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
