A/TT100-BO-2 - ACI
Automation Field Components

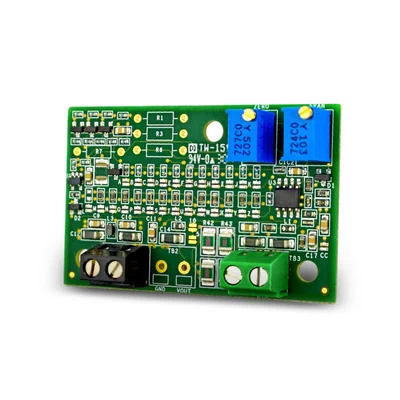

Transmitter w/ 100 Ohm RTD, Board Only, 2-10VDC Output

More information

This item is temporarily out of stock.

It can be backordered right now, and we can ship it within 5 weeks.

STOCK:
0
SKU:
118460
BRAND:
ACI
ORIGIN:
U.S.A.
List Price : 98.00 USD
30% Off Price: 68.60 USD
Net Price: 2,371.04 TL

{{CMP.TITLE}}

  • A-TT100-BO-2 Data Sheet
    A/TT100-BO-2 - ACI
    Automation Field Components

    download pdf


    Please contact us if you need any other document this item may have.
    You can only download Technical Document (Datasheet) on this section.



    The ACI Transmitter Board Only Series features a two-wire, 4 to 20 mA loop powered output signal with optional 3-Wire voltage output signals available. Sensors are not included with the board only transmitter since they are designed to be used with any existing 100 or 1000 Ohm Platinum RTD sensor with a 385 temperature coefficient. All transmitters must be ordered with the temperature span that you require, since the boards are tuned to give you the best performance characteristics for the temperature span specified. Zero and Span adjustments are available for recalibration in the field when using NIST Certified equipment. ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to protect against the introduction of noise onto the signal lines. For applications in which a much you are looking for increased temperature performance and a higher level of corrosion and moisture resistance, our Ruggedized (Thermally Conductive Epoxy Coated) transmitters are also available. ACI does offer recalibration services for any transmitters sent back to us for a nominal fee. Applications: Replacement Temperature Transmitters, High Moisture and Corrosive Environments, Conversion of existing Platinum 2 or 3 Wire RTD’s to linear current or voltage output signal, transmit signals over long wire runs

    Warranty :
    This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.
    Delivery Information :
    ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
