A/SYPHON-180 - ACI
Automation Field Components
Syphon, ¼” MNPT, 180°, Schedule 40, 316 SS
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
137247
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/SYPHON-180 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

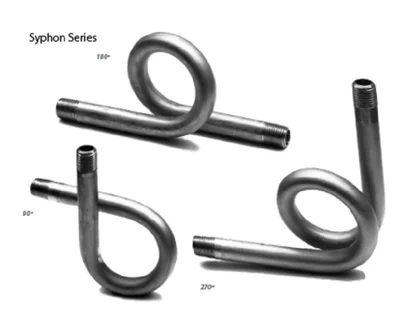

The A/SYPHON Series has been designed to provide protection for the ACI Gage and Wet to Wet Differential Pressure transmitters from damage in boiler applications where the operating temperature of the steam being monitored is higher than the maximum operating temperature of the pressure transducer. Three different bend configurations of 90º, 180º, and 270º are available in order to allow the mounting of the pressure transducer vertically away from the main pipe. When mounting the Pigtail Syphons, make sure that the syphon is fully exposed to the ambient air and not covered by any pipe insulation. The Pigtail Syphons feature a stainless steel construction with ¼” Male NPT pipe threads and are compatible with a wide range of gases and liquids.
The A/SYPHON Series is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's web site, www.workaci.com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
