A/RH5-R-LCD-010 - ACI
Automation Field Components
TUCH2, RH5%
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
142795
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/RH5-R-LCD-010 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

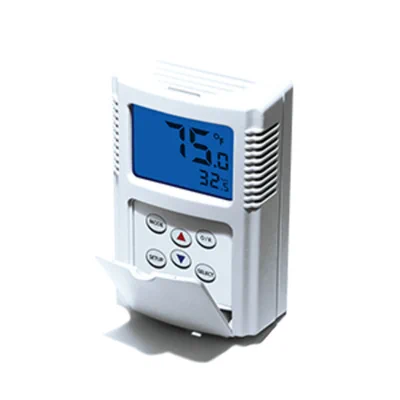

Humidity Sensor with LCD
The ACI Relative Humidity with LCD utilizes a thermoset polymer capacitive sensing element with integral hydrophobic filter to deliver a proportional analog current or voltage output with long term reliability. The styling of the white, wall mounted enclosure with hinged cover makes it suitable for use in a wide variety of applications. The ACI RH LCD series products can be powered with either an AC or DC supply voltage and features a large, backlit display which improves the overall visibility of the display. Other features include onsite eld calibration through a single point o‑set through the programming of the device using the integral keypad. All units must be ordered with one of the supported output signals of 4-20 mA, 0-5 VDC, or 0-10 VDC. For additional options, including temperature, set point, override, fan and system settings, please see the A/TUCH2 product data sheet.
Applications: Local Humidity Display, Hospitals and Operating Rooms, Pharmaceutical Labs, Clean Rooms, ESD Static Control, Humidification, Dehumidification
The ACI RH LCD is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
