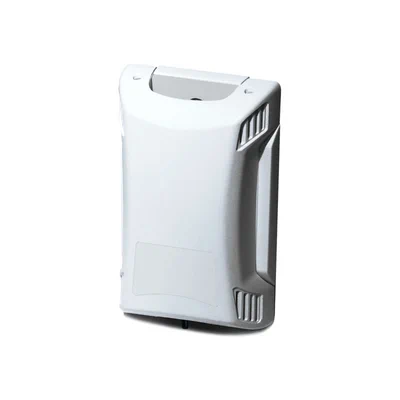

A/RH3-AN-R2LO - ACI
Automation Field Components

Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Room (R2), ± 3% Accuracy, 10,000 Ohm Thermistor (Type III), Custom Logo, w/ Override

More information

This item is temporarily out of stock.

It can be backordered right now, and we can ship it within 5 weeks.

STOCK:
0
SKU:
146325
BRAND:
ACI
ORIGIN:
U.S.A.
List Price : 242.00 USD
30% Off Price: 169.40 USD
Net Price: 5,855.02 TL

{{CMP.TITLE}}

  • A-RH3-AN-R2LO Data Sheet
    A/RH3-AN-R2LO - ACI
    Automation Field Components

    download pdf


    Please contact us if you need any other document this item may have.
    You can only download Technical Document (Datasheet) on this section.



    The ACI Relative Humidity Room Series utilizes a thermoset polymer capacitive sensing element with a factory fi­tted hydrophobic ­filter to improve its moisture resistance. The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found. (For RH/Temp combination units, please see data sheet for temperature output specifications). The RH room sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Single point ­field calibration can be performed by using the increment and decrement calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the corresponding switches. These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the ­field. There are two enclosure options in this series which should satisfy most commercial decors. Both enclosures feature four-way air flow to minimize self-heating. Three and Five-point NIST Calibration Certi­ficates are available and must be ordered separately when placing your order.



    Warranty :
    This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.
    Delivery Information :
    ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
