A/AN-RA-24'-PB - ACI
Automation Field Components

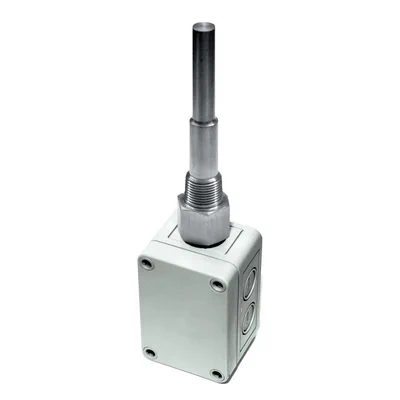

10,000 Ohm Thermistor (Type III), Rigid Probe Averaging, 24', Plastic Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
121574
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/AN-RA-24'-PB - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The ACI Thermistor Rigid Averaging Series features a ¼” Diameter stainless steel sensing element with two, 12”, 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. The sensors in this series are manufactured with 4 sensing points in lengths from 12” to 36”. The rigid averaging sensors will provide a better average temperature of the air inside the duct when compared to a single point sensing element. Each of the elements is hermetically sealed to prevent any moisture intrusion and includes an integrated foam pad to properly seal the duct and dampen vibrations when installed. The benefits of using the rigid averaging sensor is that it mounts like a standard single point duct sensor but includes three additional sensing points for better control. The sensor length should be determined by the size of your duct. Our standard enclosures include the galvanized junction box “-GD” or plastic duct enclosure “-PB” with the hinged cover depending on your preference. This series can be ordered with optional NEMA/IP rated weather proof enclosures as referenced in the ordering grid. Applications: Air Handlers, Roof Top Units, Mixed Air/Discharge/Supply/Return Air Temperature Monitoring, Data Centers, Hospitals
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
