A/6DI-1AO - ACI
Automation Field Components
6 Analog/Digital Inputs to 1 Analog Output
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
121293
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/6DI-1AO - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

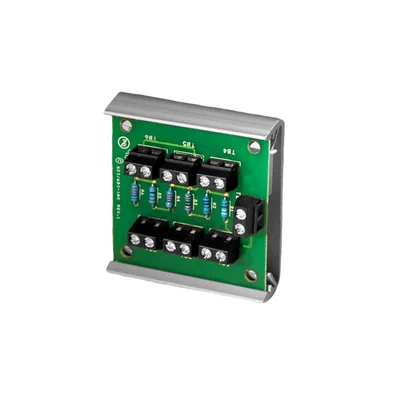

The 6DI-1AO board accepts from two to six digital inputs and converts it into a resistance output. The six inputs could be used to represent a set of contacts at a door/window being in the open or closed position. Each input needs to be monitored to indicate a specific location. The controller used with this board must accept a resistance input. A unique resistor value is defined for each location so that no combination of inputs would be duplicated in total resistance. A combination of binary inputs can be closed at any one time so that the total resistance will be unique value for each of the 64 discreet output values achieved. This unit comes with a convenient snap track for mounting. The 6DI-1AO is covered by ACI's Two (2) Year Limited Warranty.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
