A/3K-S10-PB - ACI
Automation Field Components

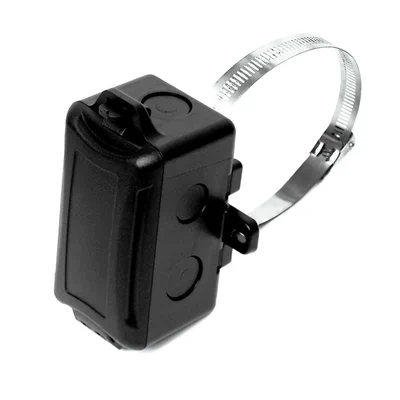

3,000 Ohm Thermistor, Strap On, 10" Strap, Plastic Enclosure
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
144629
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/3K-S10-PB - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The ACI Thermistor Strap-On Series features a 1.5” square copper plate with the sensor encapsulated to the back side of the plate to improve the thermal conductivity between the pipe and the sensor when an Immersion style sensor can’t be inserted into the pipe. Each sensor has two, 14 inch 22 AWG Etched Teflon colored lead wires to dierentiate the dierent sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture upon the sensors as well as to improve the thermal response times using our high quality, thermally conductive epoxy. The Strap-On Series sensors can be used to monitor pipe sizes from 1 ¼” to 10” in diameter. For best accuracy and increased thermal conduction between the pipe and the sensor, ACI recommends to clean the pipe before applying thermal grease as well as to insulate the sensor from the effects of the ambient air. Optional weather proof enclosure and NIST certificates are available upon request.
Applications: Cold Water Systems, Hot Water Systems, Retrot, Hydronic Heating Systems, Chillers The ACI Thermistor Strap-On Series is covered by ACI's Five (5) Year Limited Warranty.
The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
