RT-3000-P - ACI
Automation Field Components
Smoke Detector, Multi-Application, NEMA 4X, Photoelectric
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
128328
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
RT-3000-P - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

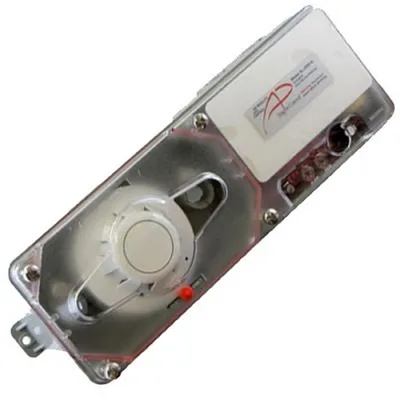

The RT-3000 is designed to be an installer and servicer friendly product line. It significantly reduces the total cost of ownership versus other comparable products. It offers a host of “No-Tools Required” features, as well as a multi-application performance level unmatched in the industry. Duct smoke detectors are designed to prevent the recirculation of smoke in areas by air handling system’s fans and blowers. The RT-3000 is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Output terminals are provided for remote accessories such as horns, strobes, remote status indicators, and test/reset key switches or pushbuttons. Air sampling is accomplished via two tubes that protrude into the duct. An exhaust tube with a standard length of 7" is supplied in the installation kit with the unit. Once the duct size is determined, a sampling tube must be ordered. Three standard sizes including a 2.5', 5', and 10' lengths can be ordered and cut to the correct size of the duct.
Early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
