Data Sheet | Teknik Doküman QRP-A - ACI Otomasyon Saha Ekipmanları pdf indir

Bu ürünün sahip olabileceği farklı bir doküman ihtiyacınız var ise lütfen bizimle iletişime geçiniz. Bu bölümden sadece ürüne ait teknik verileri içeren Teknik Dokümanı (Datasheet) indirebilirsiniz.

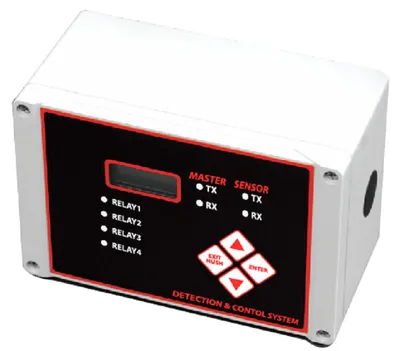

QRP-A Remote Panel has been designed to connect to M-Controller Gas Monitoring System, which can host up to 12 QRP-A or M-Relay units to provide flexible and programmable controls. The QRP-A units display the relay status and gas concentration; perform actions programmed in the M-Controller. Each QRP-A contains 4 removable relays for alarms, fans etc. and 3 24VDC transistor outputs for buzzer, strobe light and horn. Although the QRP-A is designed to perform actions programmed in the M-Controller, it’s possible to override the 4 relays and 3 transistor outputs through the keypad and LCD display screen and clear the override by password protection, which makes the M-Controller System compliant with safety regulations, such as CSA Standard B52 Mechanical refrigeration code. The enclosure of the QRP-A is rated IP66 & NEMA 4, 4X, 12 & 13 and is UL listed. Relay status indicator and RS-485 communication indicator are visible at the front of the enclosure. QRP-A power supply is designed for 24VDC/AC.
