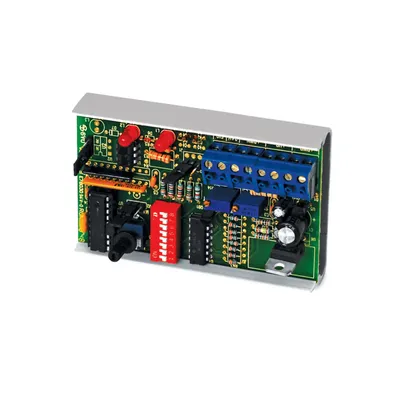

PTA VERSION #2 - ACI
Automation Field Components
Pulse Width Modulation Input (0.1 to 10 sec), Analog Output, Version 2(0.023 to 6s Selectable)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
109493
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PTA VERSION #2 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The PTA converts a single pulse-width modulated input to an analog current or voltage output. A timed contact or solid state closure from the controlling microprocessor controller is converted to a linear analog output signal with 256 steps of resolution. The last output signal is held until the PTA receives the end of the next pulsed input signal. The PTA’s output will not wrap around if an excessively long input pulse is received. Ten preset analog output signal spans are DIP switch selectable. In addition, the span and offset potentiometer offer maximum user adjustment of the output signal. The input signal is optically isolated and can accept either positive or negative polarity. The PTA is covered by ACI's Two (2) Year Limited Warranty.
- Interface to Variable Speed Pump Drive
- Interface to Electric Actuator
- Duty cycle to analog control
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
