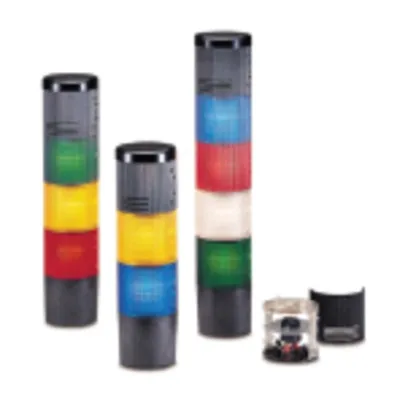

The Litestak® status indicator is an indoor stackable 24VDC lighting option that provides a 360°
visual signal. There can be up to five light modules or up to four light modules plus an optional
sound module to create a dual purpose audible/visual status indicator. The light modules are
available in five lens colors: Amber, Blue, Clear, Green and Red. The clear module or the sound
module is always mounted at the top position of a Litestak® unit if used.

Individual light modules may be set to either steady or flash using the optional flasher. The light
modules consist of two impact-resistant polycarbonate lens halves that snap apart to provide easy
maintenance and interchangeability of colors. The flasher and sound module are sold separately.

The LSB base can be installed on a 3/4-inch NPT pipe mount or surface mounted and the LSBS for low profile surface mounting. The Litestak® stack
should be mounted with the base at the bottom.

The Litestak is covered by ACI’s Two (2) Year Limited Warranty. The warranty can be found in the front of ACI’s Sensors & Transmitters
catalog, as well as on ACI’s web site, workaci.com.
