ATL-DB-1% - ACI
Automation Field Components
Analog input, Relay Output, 4 (SPDT) Relays, 1% Deadband
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
129665
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
ATL-DB-1% - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

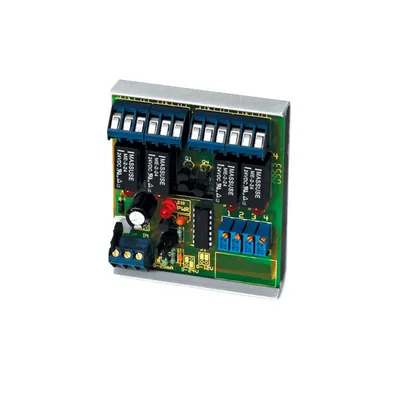

The ATL accepts an analog voltage or current input signal and controls four relays. Each relay has an adjustable trip point which is set by a multi-turn trimmer potentiometer. Each relay is activated when the input signal is equal to or greater than the trip point setting. The relays reactivate at trip point less the deadband (3% standard, 1% & 10% optional). Common (C), Normally Open (NO)and Normally Closed (NC) terminals are available at each relay. The ATL can also accept a resistance input by using voltage divider applications. The ATL is covered by ACI's Two (2) Year Limited Warranty.
- Level indicators
- Sequencers
- Alarms
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
