A/TTM1K-R-4 - ACI
Automation Field Components

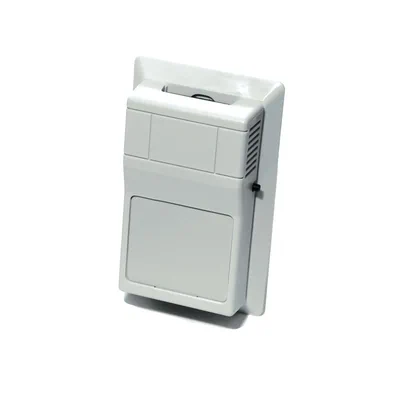

Transmitter w/ 1,000 Ohm RTD (NIST Cert), Room (R), 4-20mA Output
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
118996
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/TTM1K-R-4 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
ACI temperature transmitters are a cost effective solution for all of your temperature measurement needs. The transmitters are accurate, durable, and reliable. Numerous mounting configurations are offered. ACI produces two temperature transmitters, the A/TT100 for use with a 100 Ohm Platinum RTD and the A/TT1K for use with a 1K Ohm Platinum RTD. The transmitters produce a linear 4-20 mA output carried on a two-wire system. Optional output voltage ranges of (+1-5 or +2-10 VDC) can also be ordered. The transmitter is supplied factory calibrated, and supplied with zero and span potentiometers for field calibration. The transmitter is linear from -50 to 392°F. ACI's room enclosures combine option flexibility with attractive styling. In addition, they have four-way airflow to minimize self heating. Options include setpoint, override, communication jack, and LCD. Additional enclosure colors are available on a limited basis. ACI room temperature sensors are designed for HVAC or Building Automation Systems. Specific applications include: zone control, office and work spaces, auditorium, conference rooms, and hallways. Sample Part #: A/TT100-6-RS-4 or A/TT100(20-120F)-R-DC-4 TT-RSO Instruction
- Analog output, custom calibration ranges available, NIST certificate option
- 4-Way airflow
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
