A/TTM1K-LTS-4-4X-6' - ACI
Automation Field Components
Transmitter w/ 1,000 Ohm RTD (NIST CERT), 2" Freezer Probe 316SS, NEMA 4X Enclosure, 6', 4-20mA Output
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
118985
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/TTM1K-LTS-4-4X-6' - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The ACI RTD Freezer Series features a 3/16” diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required. Optional “-GD” galvanized, “-BB” Aluminum, or “-4x” NEMA 4X weather proof plastic enclosures are available as well as NIST Certificates as referenced on the back of the product data sheet. A/TT Series transmitter accuracies must be calculated using both the calibration accuracy of the transmitter and the sensor accuracy over your applications operating temperature range. For higher accuracies, the A/TTM Series includes a secondary calibration process designed to eliminate most of the sensor error from the overall system accuracy. Any Freezer Transmitter can be used with the Single or Triple Point Glycol Kits when a Thermal Buffer (slower) response time is desired.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
A/1K-3W-D-12'-BB - ACI
Automation Field Components
1,000 Ohm (Three Wires) RTD, Duct, 12', NEMA 3R Enclosure
A/DLP-D25-W-B-D-B-1-C-3P-S - ACI
Automation Field Components
Differential Low Pressure, 0.25 W, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube, 0-10 VDC Output, 3 Point Nist, Standard
A/TT100-R2S-4-G5 - ACI
Automation Field Components
Transmitter w/ 100 Ohm RTD, Room (R2), Setpoint, 4-20mA Output

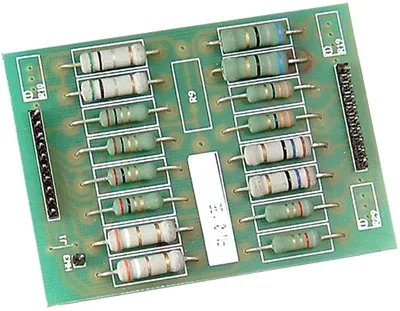

RN (240-730) - ACI
