Data Sheet | Teknik Doküman A/TT1K-LT-O-4 - ACI Otomasyon Saha Ekipmanları pdf indir

Bu ürünün sahip olabileceği farklı bir doküman ihtiyacınız var ise lütfen bizimle iletişime geçiniz. Bu bölümden sadece ürüne ait teknik verileri içeren Teknik Dokümanı (Datasheet) indirebilirsiniz.

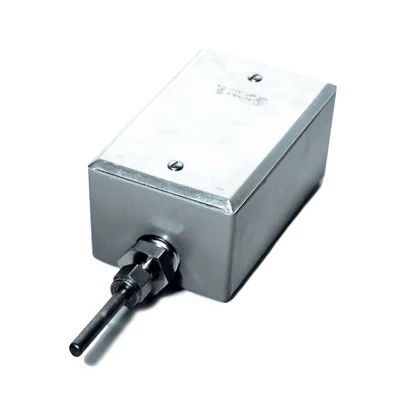

The ACI Low Temperature Outside Air Series temperature sensors and transmitters are a single point sensor featuring a three wire RTD sensor assembly with a 316 Series stainless steel probe. The three wire sensors can be used with a two-wire transmitter by connecting the two (Red) colored wires to one of the RTD terminal blocks with the 3rd wire (White) wire connected to the second RTD Terminal block. The purpose of the 3rd wire is to compensate for external lead wire resistance that will aect the accuracy of your sensor output when using with a three-wire temperature transmitter or sensor configuration on your Building Management System or PLC (Programmable Logic Controller. ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using the A/100/1K-3W-O style Platinum RTD series sensors without temperature transmitter. The operating specifications are for both the sensor and transmitter as designated in the specification table. The transmitter is mounted in the Galvanized junction and should be mounted inside your building with the sensor assembly mounted in the Aluminum Bell Box for mounting outdoors due to the extreme temperatures. NIST Certificates are available for all of the configurations listed in the ordering grid on the back of the product data sheet. For best accuracy, ACI recommends the use of the TTM100 or TTM1K Series Matched transmitters with a 3 or 5 Point NIST Calibration Certificate since they include a second calibration step in which the RTD and transmitter are calibrated together as a system, which will remove most of the sensor error over the calibrated temperature span of the transmitter. Applications: Freezers, Outside Air Temperature, Cold Storage Facilities, Manufacturing Facilities, Process Control
